S275JR Carbon Steel Plate

S275JR steel plate,S275JR grade steel is a readily weldable low carbon manganese steel with good impact resistance. This material is commonly supplied in the untreated or normalised condition. Machinability of this material is similar to that of mild steel.EN 10025 S275 Steel is a non-alloy structural steel grade, according to EN10025, S275 mild steel is mainly devided into S275JR (1.0044), S275J0 (1.0143) and S275J2 (1.0145). Some properties of S275 mild steel is better than S235, and lower than S355.

Classification :

Carbon Steel Plate

+86 18053159069

sales03@yilimetal.com.cn

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product Parameters

Product Name	Carbon Steel Sheet/Plate
Thickness	0.1mm-400mm
Width	12.7mm-3050mm
Length	5800，6000 or customized
Surface	Black skin, Pickling, Oiling,galvanized，tinning，etc
Material	S235JR,S275JR,S355JR,A36,SS400,Q235,Q355,ST37, ST52,SPCC,SPHC,SPHT,DC01,DC03,etc
Standard	GB,GOST,ASTM,AISI,JIS,BS,DIN,EN
Technology	Hot rolling, Cold rolling, Pickling,galvanized，tinning

Chemical Composition

Datasheet 1, EN10025 S275J0, S275J2 and S275JR chemical composition based on ladle analysis is given in the following table.

			Chemical Composition (ladle analysis), %, ≤
Country (Region)	Standard	Steel Grade (Steel number)	C	Mn	P	S	N	Cu	Thickness (d) (mm)	Method of deoxidation
European Union	EN 10025-2	S275JR (1.0044)	0.21	1.50	0.035	0.035	0.012	0.55	≤ 40	Rimmed steel not allowed
			0.22						> 40
		S275J0 (1.0143)	0.18	1.50	0.030	0.030	0.012	0.55	≤ 150	Rimmed steel not allowed
			0.20						> 150
		S275J2 (1.0145)	0.18	1.50	0.025	0.025	–	0.55	≤ 150	Fully Killed
			0.20						> 150

Datasheet 2, chemical composition based on product analysis.

			Chemical Composition (product analysis), %, ≤
Country (Region)	Standard	Steel Grade (Steel number)	C	Mn	P	S	N	Cu	Thickness (d) (mm)	Method of deoxidation
European Union	EN10025-2	S275JR (1.0044)	0.24	1.60	0.045	0.045	0.014	0.60	≤ 40	Rimmed steel not allowed
			0.25						> 40
		S275Jo (1.0143)	0.21	1.60	0.040	0.040	0.014	0.60	≤ 150	Rimmed steel not allowed
			0.22						> 150
		S275J2 (1.0145)	0.21	1.60	0.035	0.035	–	0.60	≤ 150	Fully Killed
			0.22						> 150

Mechanical Properties

Yield Strength
Grade S275 Datasheet – 3

		S275 Yield Strength (≥ MPa); Dia. (d) mm
Steel	Steel Grade (Steel Number)	d≤16	16< d ≤40	40< d ≤63	63< d ≤80	80< d ≤100	100< d ≤150	150< d ≤200	200< d ≤250
S275	S275JR (1.0044)	275	265	255	245	235	225	215	205
	S275J0 (1.0143)
	S275J2 (1.0145)

Tensile Strength
EN 10025 S275 Datasheet – 4

		S275 Tensile Strength (≥ MPa)
Steel	Steel Grade	d<3	3 ≤ d ≤ 100	100 < d ≤ 150	150 < d ≤ 250
S275	S275JR (1.0044)	430-580	410-560	400-540	380-540
	S275J0 (1.0143)
	S275J2 (1.0145)

Note: 1MPa = 1N/mm2
Elongation
S275 material Datasheet – 5

		Elongation (≥%); Thickness (d) mm
Steel	Steel Grade	d≤1	1< d ≤1.5	1.5 < d ≤2	2 < d ≤ 2.5	2.5 < d ≤ 3	3 ≤d ≤40	40< d ≤63	63 < d ≤100	100 < d ≤ 150	150 < d ≤ 250
S275	S275JR	15	16	17	18	19	23	22	21	19	18
	S275J0 (S275JO)
	S275J2	13	14	15	16	17	21	20	19	19	18

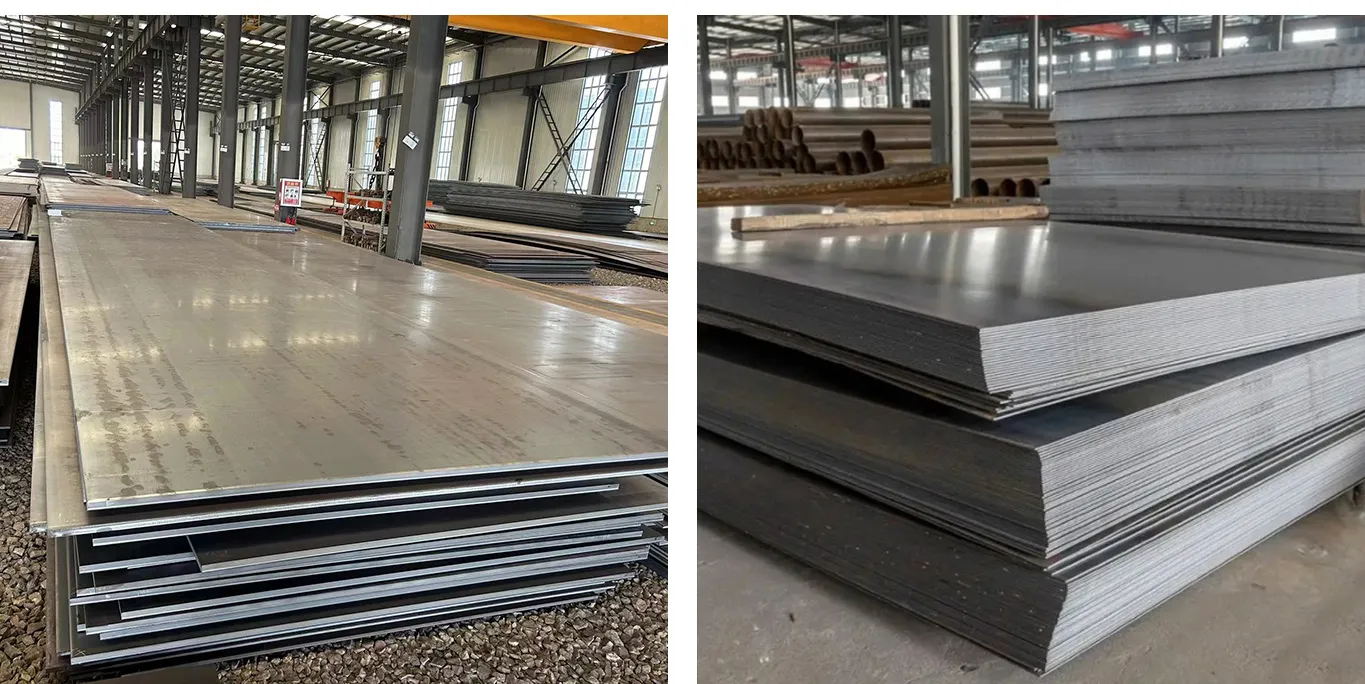

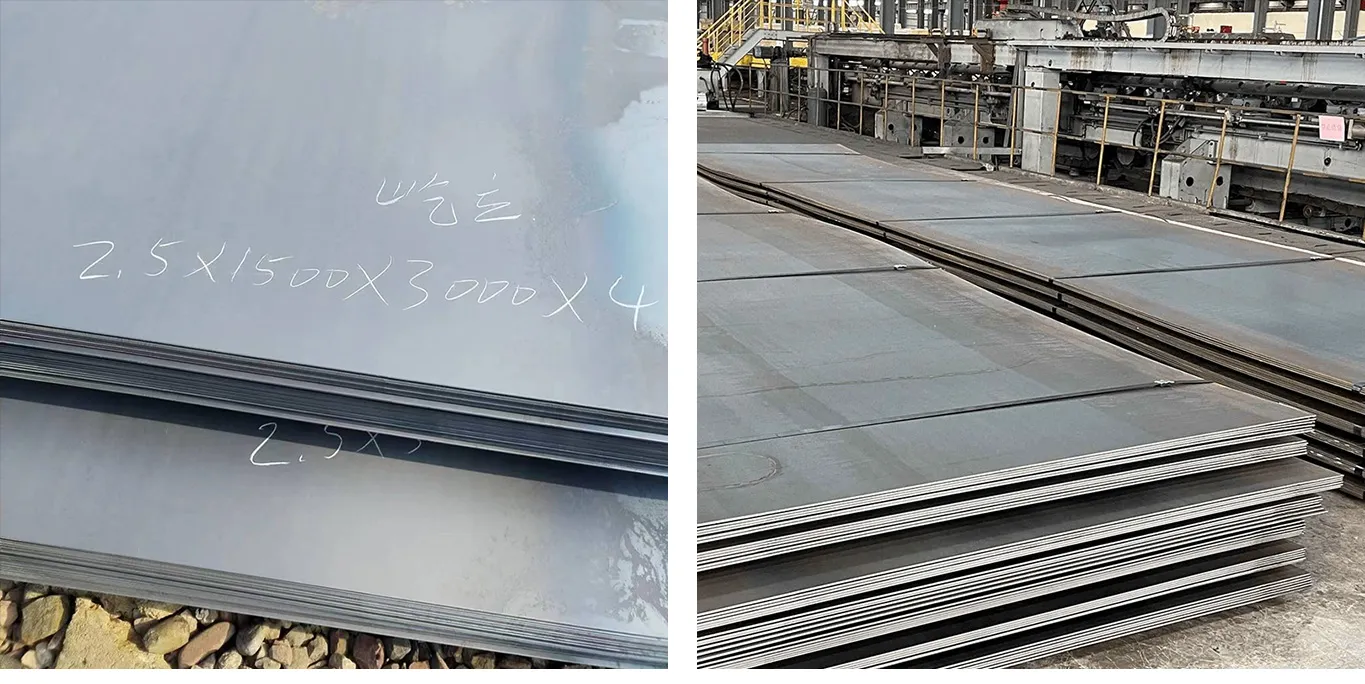

Product Display

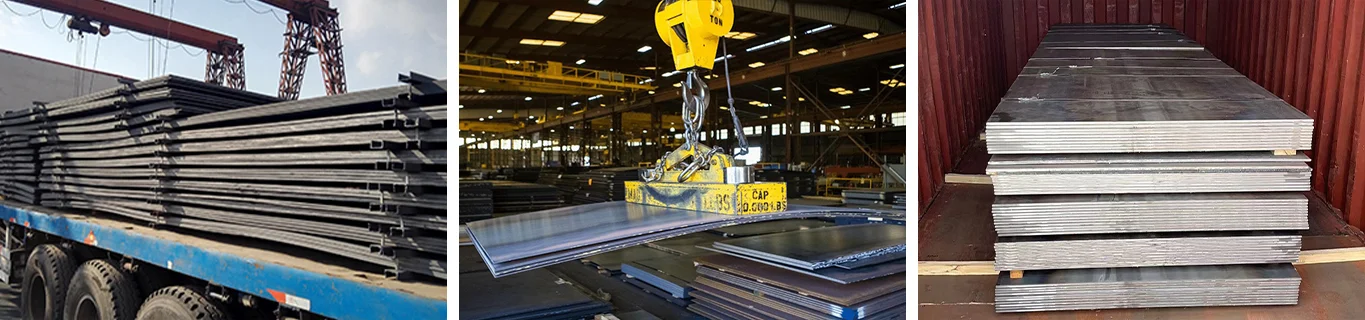

Packing and Delivery
